Mixing up brake pads on a race automotive can appear counterintuitive at first look however NASCAR Cup groups usually do it on objective with a purpose to work across the guidelines and anybody desirous to be aggressive at Phoenix this weekend shall be making an attempt it.
The NASCAR Subsequent Gen automotive is usually assembled with single supply components so groups can’t construct customized suspension or brake elements however brake pad compounds usually are not restricted so groups have found out easy methods to alter the dealing with of the automotive by mixing friction compounds and putting in various kinds of brake pads on every nook of the automotive.
This apply is named splitting brake pads and it may be very efficient at making a race automotive sooner or extra secure right into a flip however will also be harmful because the imbalance of friction backward and forward can overheat the brakes and trigger a rotor to shatter as we noticed with the No. 20 of Christopher Bell on the 2023 NASCAR championship race at Phoenix.
How brake pad splitting works
Crew working inside wheel wells of Austin Cindric’s Group Penske Ford
Photograph by: David Buono – Icon Sportswire – Getty Photos
Within the easiest phrases, brake pad splitting means that you’ve a break up compound both facet to facet or entrance to rear the place the brake pads throughout any angle usually are not matched however as a substitute have completely different friction compounds. In an atmosphere the place groups can not construct customized suspension or brake elements with a purpose to enhance the dealing with of the automotive they chase no matter half is open and having greater friction pads on the fitting facet of the automotive will help a automotive be extra secure getting into a nook.
We checked in with Joey Cohen who’s presently president of GMS Race Vehicles and has labored in a variety of technical positions in NASCAR and different collection starting from engineer to government to study extra about brake splitting and why Cup groups break up brake pads.
“That is finished in an effort to tune for steadiness based mostly on how braking torques are utilized,” Cohen defined. “This will help how a automotive hundreds a sure nook beneath braking together with weight transition and in addition the temperature vary the brake can function at. Some widespread configurations could possibly be entrance v. rear, left v. proper, and even remoted to at least one nook of the car to forestall lock-ups when a wheel turns into mild on load.”
Why brake pad splitting is vital at Phoenix
As Cohen shares, the brake pads find yourself getting used to pressure the automotive to show a sure manner with particularly chosen corners of the automotive being grabbier than others and it turns into considerably vital at a monitor like Phoenix Raceway due to its distinctive structure. Phoenix is an uneven monitor so braking and dealing with of each nook is exclusive and establishing the automotive is all the time a compromise however splitting the pads can mitigate a few of that. Entry into flip 1 at Phoenix in comparison with flip 3 is sort of completely different as a result of structure of the monitor and Cohen shares that “Into flip 1, your entry is coming off the dogleg entrance straightaway whereas the entry into flip 3 is extra accomplished in a straight line off the again stretch.”
The break up brake pads act nearly like a personalized suspension with a purpose to enable dealing with to be equalized throughout distinctive corners along side the brake bias adjustment that the drivers have within the automotive which permits them to shift brake stress from entrance to rear on the fly.

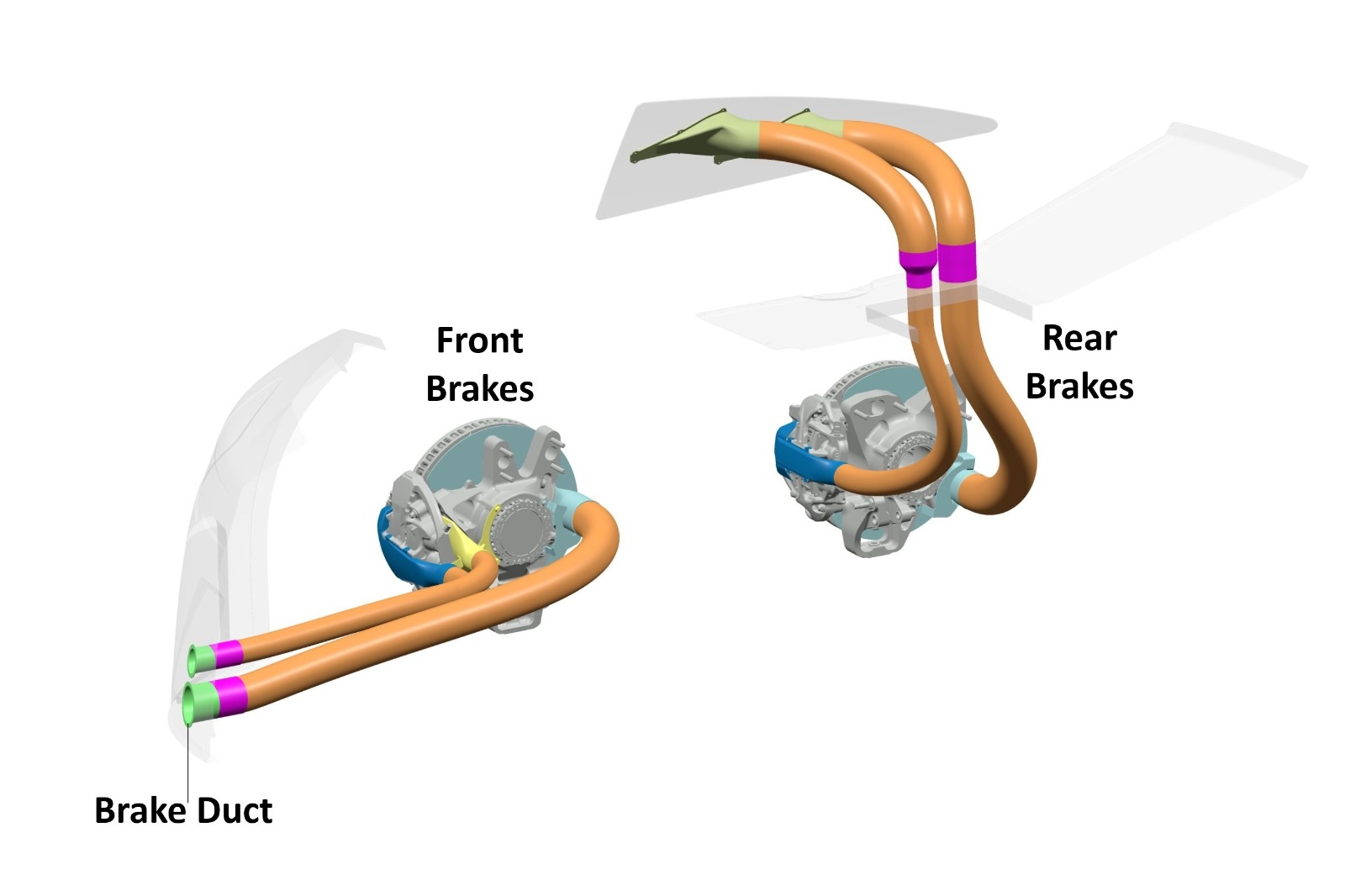

One other one of many distinctive features of Phoenix that isn’t current at different quick tracks is the truth that it has fairly lengthy straightaways which signifies that the brakes can see giant temperature swings if the brake ducts are extensive open. In sure circumstances, groups will regulate the friction compound of a sure nook of the automotive with a purpose to decrease these temperature swings in the event that they count on the nook to be overcooled on the straights.
Aero additionally performs a a lot bigger position at Phoenix than at different quick tracks and Cohen mentions that splitting brake pads may also mitigate sure aero results: “Braking can create giant variations in platform of the car (pitch motion ahead). This can have an effect on the general and entrance/rear downforce profile of the race automotive transitioning from entry to heart of the nook. A brake pad of various friction configuration can remove or clean out the platform variations.”
Why groups use brake pad splitting
An in depth view of the NASCAR Subsequent Gen wheel
Photograph by: James Gilbert / Getty Photos

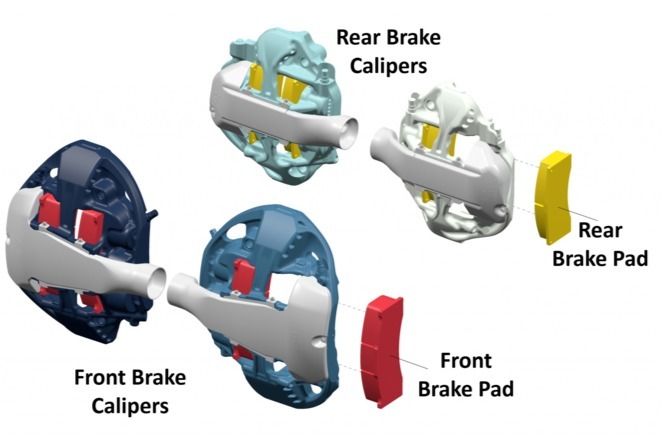

In previous generations of the NASCAR Cup automotive, groups may construct customized suspension elements and choose very particular brake elements for the automotive based mostly on monitor and even combine and match issues like brake calipers or suspension arms from nook to nook. The Subsequent Gen mannequin eradicated all of these decisions so groups now should use spec components from particular suppliers when constructing vehicles and the identical brake calipers and suspension arms should be used throughout a wide range of completely different tracks.
Along with being able to construct customized brake and suspension elements in previous generations, groups may additionally set up shut off or delay valves or route brake traces in particular configurations with a purpose to have an effect on the bias to any particular nook of the brakes. Cooling was additionally as much as the groups so they may match particular corners with customized cooling for the friction profile of the brakes or for particular aero that they may be chasing. With all of those choices off the desk, groups now attempt to do all of these modifications solely by customizing the friction compounds of the brake pads.
How brake pad Splitting might be harmful

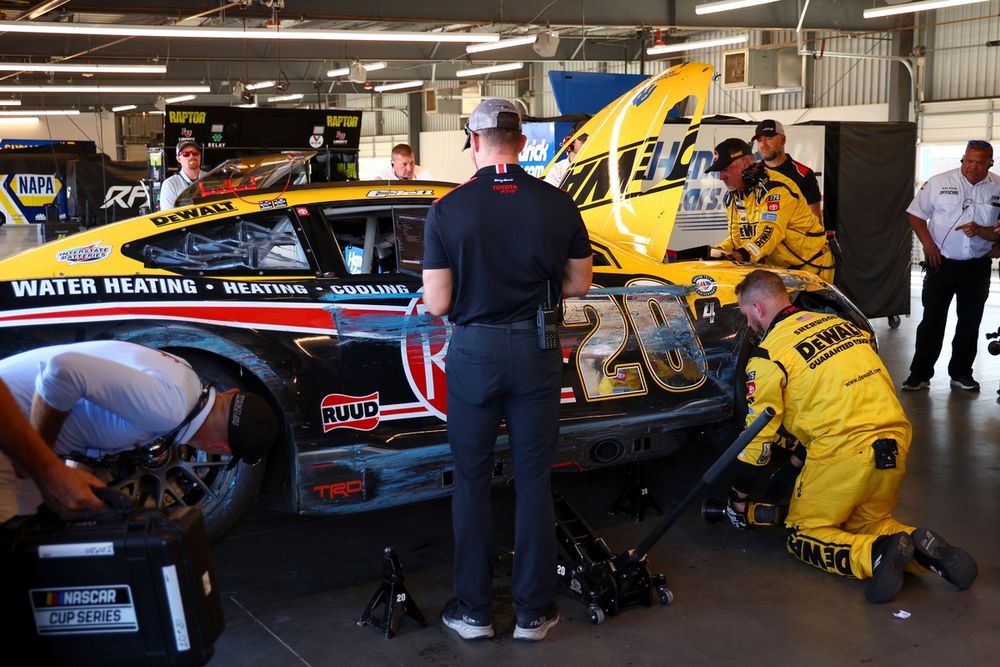

Christopher Bell, Joe Gibbs Racing Toyota
Photograph by: Jared C. Tilton/Getty Photos
We noticed the championship hopes for Bell finish shortly throughout that 2023 finale at Phoenix as his proper entrance rotor shattered and took the fitting entrance wheel and tire. That is the place the hazards of brake pad splitting are available and why it’s all the time a fragile steadiness when groups chase efficiency in unorthodox methods. The seemingly state of affairs in that scenario is that they have been chasing stability whereas getting into a nook by having greater friction pads on the fitting facet of the automotive versus the left. It labored for some time however they went too far as the warmth generated by the friction on the fitting entrance was an excessive amount of for the out there cooling.

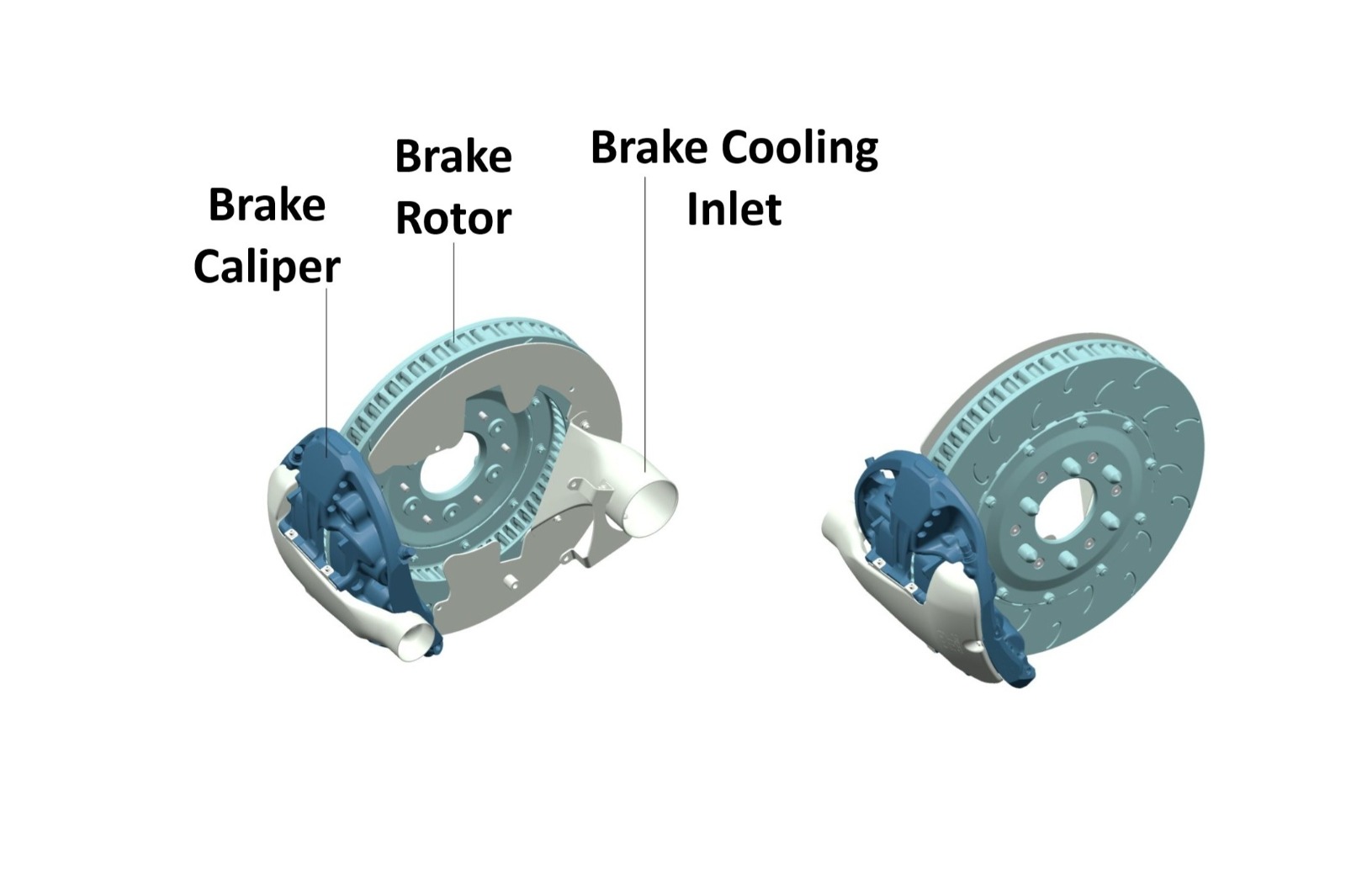

As soon as the rotor will get too scorching it could actually develop to such an extent that it could actually contact the brake caliper after which as soon as the automotive will get on a straightaway it will likely be abruptly cooled off which might trigger it to shatter from the massive temperature distinction. Cohen notes that there are a selection of different disadvantages of splitting pads particularly over a long term in a race.
“Excessive temperature pad compounds can maintain residual warmth that would trigger rotor cracking, glazing of the rotor floor (much less out there friction), and failure in caliper seals and elements which might result in whole nook failures of the braking system,” stated Cohen. “Uneven rotor put on and tapering of a person nook can create vibrations and wheel shake for the motive force beneath braking, and inconsistency within the response of the brake pedal.”
Groups may have some powerful decisions to make as soon as apply wraps up at Phoenix as they determine which brake pads they need to take into the race and the way massive of a threat they need to take with championship hopes on the traces.
